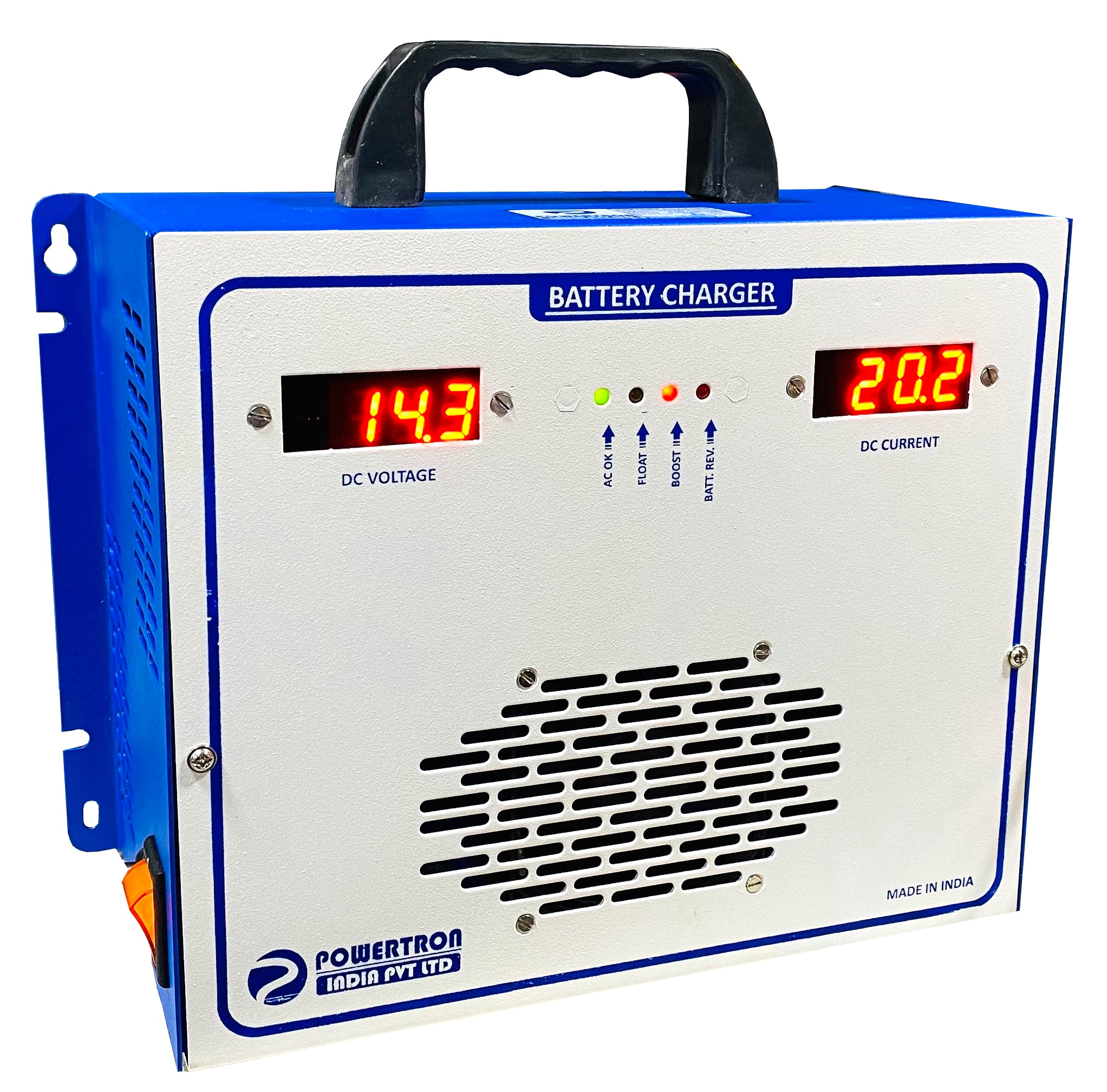

Description
Output Voltage
12 V
Output Current
20 A
Battery Chemistry
Lead Acid
Application
Marine, DEFENCE, Automotive, Forklift
Charging Method
Automatic
Warranty
1 Year
Brand
Powertron
Model Name/Number
PIPL-1220BCD
Number of Batteries Charged
2
Features
With Display, Copper Transformer, Adjustable Current, Overload Protection
Load Regulation
<+/-1%
Efficiency
>85%
Protection Overload
Above 105% Rated Output Power
Working Humidity
Max. 90% Rh Non Condensing.
Enclosure Protection
IP-20
Cooling Type
Forced Cooling
Dimension
260 x 225 x 145 mm (W x D x H)
Weight
3.5Kg
Input Voltage
AC 230V
Country of Origin
Made in India
Battery Voltage
DC 12V
Float Voltage
DC 13.5V
Boost Voltage
DC 14.4V
Rated Current
20A
Rated Power
300W
Ripple & Noise (Max)
<1% of Rated Voltage
Line Regulation
<+/-1%
Key Features:
Wide input supply range
Built in EMI filter, low ripple noise
Protection: Short circuit / Over load / Over voltage
100% Full Load Burn in test
High efficiency, long life and high reliability
Miniature size
