Description
Load Type
Regenerative
Rated Power
4KVA -5 KVA
Voltage Rating
10-600V, 10-800V
Frequency
50 / 60 Hz
Cooling Type
Air Cooled
Control Type
Remote Panel
Mounting
Floor Mounted
Enclosure Rating
IP55
Application
Inverter Testing, Data Center, Generator Testing
Weight (in KG)
17-19 KG
Dimension (W x D x H)
482 x 570 x 180 MM

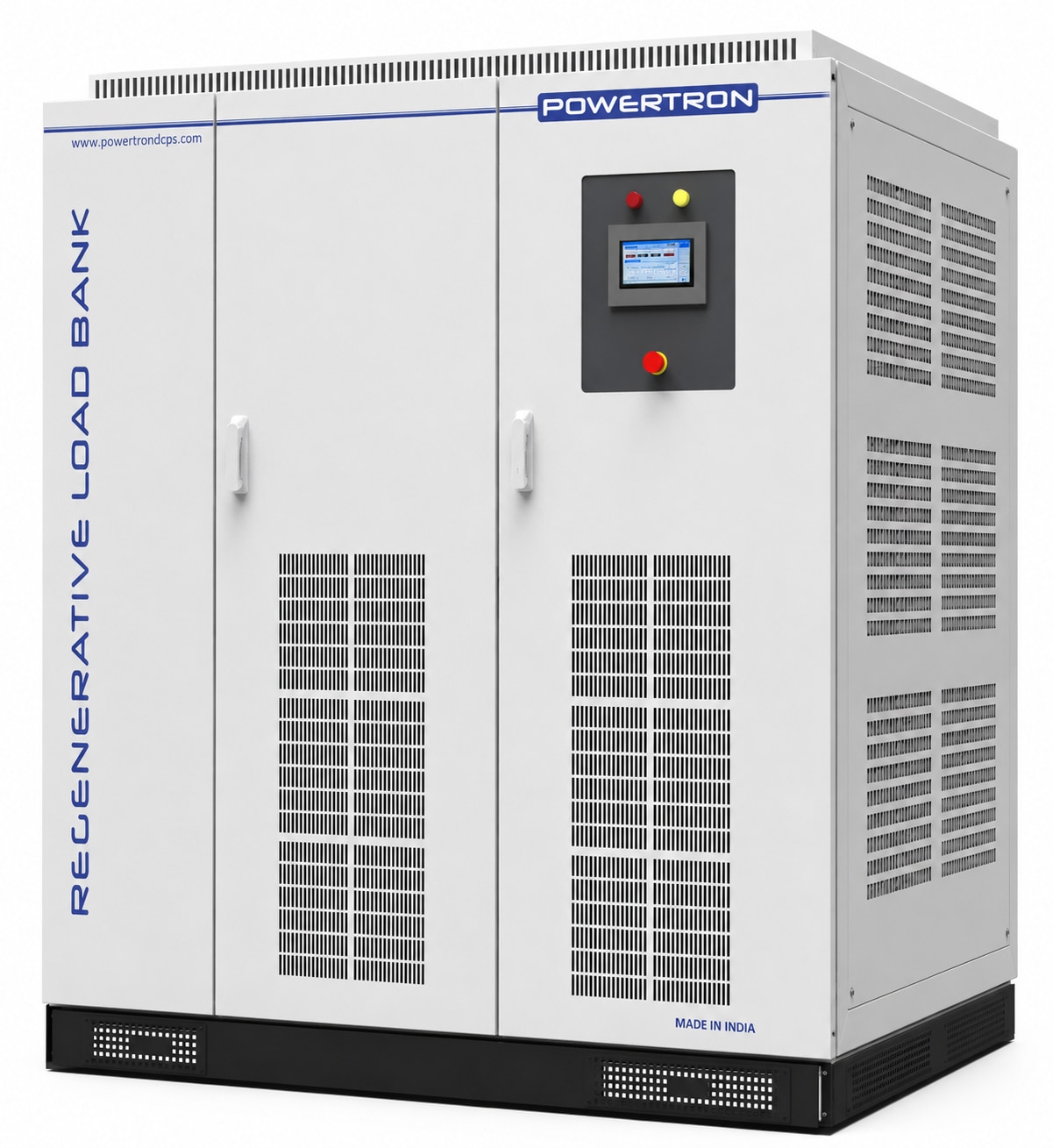

POWERTRON Regenerative Load Bank features energy recovery technology that feeds absorbed power back to the grid, significantly reducing energy waste and cooling requirements
Features
Four-Quadrant Control With Bidirectional Energy Flow
0.99 Power Factor, <3% Input Harmonics, >93% Efficiency
High-Speed Digital Control With 0.1% Output Accuracy
10-Inch Touchscreen For Easy Operation
Modular Design For Scalability
Built With Reliable International Components
